100% Compatible 10G SFP+ Transceiver Dual Fiber LC Connector 1310nm 20Km 10G-SFP-LR

Name: 100 Compatible 10G SFP Transceiver Dual Fiber LC Connector 1310nm 20Km 10GSFPLR
Brand: HILINK
Price: 1 USD

China 100% Compatible 10G SFP+ Transceiver Dual Fiber LC Connector 1310nm 20Km 10G-SFP-LR wholesale

Brand Name : HILINK

Model Number : HL-SFP-10G-LR

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000pcs/Month

Delivery Time : 2-5working days

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Product name : 10G-SFP-LR

Data Rate : 10G

Wavelength : 1310nm

Distance : 20Km

DDM : Yes

Connector type : LC

Warranty : 3 years

CE,RoHS : Compliant

Contact Now

100% Compatible 10Gbps SFP+ Dual Fiber LC Connector 1310nm 20Km 10G-SFP-LR

Feature

Duplex LC Connector
Support hot-pluggable
Metal with lower EMI
Excellent ESD protection
DFB Transmitter and PIN Receiver
Typical Center Wavelength:1310nm
Max link length up to 10Km on SMF
RoHS Compliant and Lead-Free
Digital diagnostic compatible with SFF-8472
Case Operation Temperature:-5℃~+70℃
Single 3.3V power supply and Low power

Application

10GBASE-LR/LW 10G Ethernet
Performance Specifications
Absolute maximum rating
Exceeding the limits below may damage the transceiver module permanently.

Description

SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5

Parameter

Datarate	10Gbps	Fiber Type	SMF
Transmitter	DFB	Receiver	PIN
Distance	20Km	Wavelenth	1310nm
DDM/DOM	Yes	Connector	LC
Voltage Supply	3.3V	Compatibility	Cisco/Huawei/Mikrotik etc
Operating Temperature	0℃~ +70℃	Certification	CE/FCC/RoHS

SFP+ Transceivers

Cisco Part Number	Application	Data Rate	Wavelength	Distance	Connector Type
SFP-10G-SR	SFP+ 10GBASE-SR	10G	850nm	300m	LC
SFP-10G-LR	SFP+ 10GBASE-LR	10G	1310nm	10km	LC
SFP-10G-LRM	SFP+ 10GBASE-LRM	10G	1310nm	220m	LC
SFP-10G-ER	SFP+ 10GBASE-ER	10G	1550nm	40km	LC
SFP-10G-ZR	SFP+ 10GBASE-ER	10G	1550nm	80km	LC

100% Compatible 10G SFP+ Transceiver Dual Fiber LC Connector 1310nm 20Km 10G-SFP-LR

Product Tags:

sfp+ optical module

10g sfp+ module

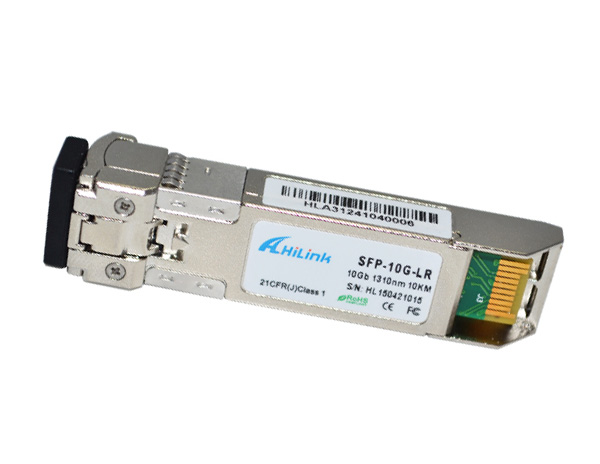

100% Compatible 10G SFP+ Transceiver Dual Fiber LC Connector 1310nm 20Km 10G-SFP-LR Images
