DWDM Booster Fiber Optical Amplifier 1U 19'' 1550nm EDFA C Band

Name: DWDM Booster Fiber Optical Amplifier 1U 19 1550nm EDFA C Band
Brand: Hilink
Price: 1 USD

China DWDM Booster Fiber Optical Amplifier 1U 19'' 1550nm EDFA C Band wholesale

Brand Name : Hilink

Model Number : HL-EDFA

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200PCS/month

Packaging Details : Plastic packaging, Carton

Name : C-Band DWDM Booster Optical Amplifier

Connector : FC-APC/UPC or SC-APC/UPC or LC-APC/UPX

Wavelength : 1529.16~1563.86nm

Power supply voltage : AC160V-250V(50Hz)orDC-48V

Operating temperature range : -5 - +55℃

Storage temperature range : -30 - +70℃

Contact Now

1550nm EDFA C-Band DWDM Booster Optical Amplifier 1U 19''

GENERAL

1550nm EDFA C-Band DWDM Booster Optical Amplifier 1U 19'' is mainly used in BA-1550-series 1550nm optical fiber amplifier 1550 important optical relay transmission in optical fiber communication system equipment, mainly for image signal, digital TV signal, telephone voice signals and data (or compressed data) ultra long haul transmission of signals. It is installed in the front of optical receiver, used for improving the receiving sensitivity of the optical receiver, and extending the signal transmission distance.

APPLIATION

Long distance trunk network.FTTx PON,Wide working wavelength: 1529.16~1563.86nm.

All kinds of SDH/PDH transmission system, High gain, low noise.

Optical Add/Drop and Cross-Connects.

Power equalization and flexible pre-emphas.

DWDM Booster Fiber Optical Amplifier 1U 19'' 1550nm EDFA C Band

DATASHEET

Project	Unit	Technical parameters	Notes
Work wavelength range(λ)	nm	1546.12~1561.42nm	ITU16CH
Work wavelength range(λ)	nm	1535.04~1562.23nm	ITU32CH
Work wavelength range(λ)	nm	1529.55~1563.86nm	ITU44CH
No. of Working channel	(CH)	1~44
Input power range	dBm	-10-+6	Recommended input optical power -3-+6dBm
Output power range	dBm	10~ 21	Optional scope: 10~17 10~20 11~21

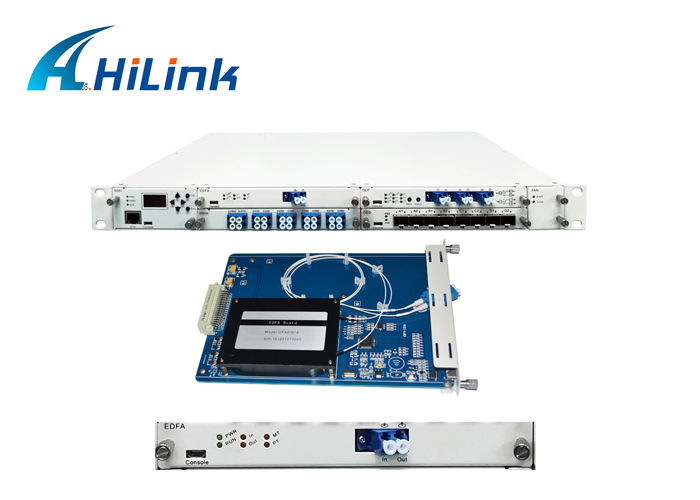

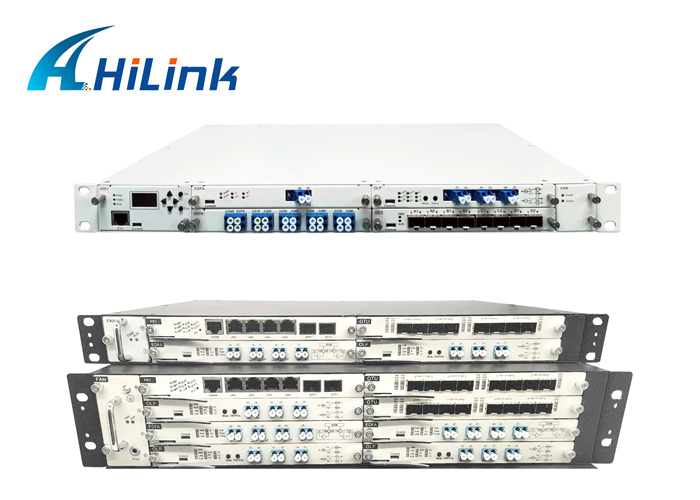

PRODUCT PICTURE SHOW:

DWDM Booster Fiber Optical Amplifier 1U 19'' 1550nm EDFA C Band
